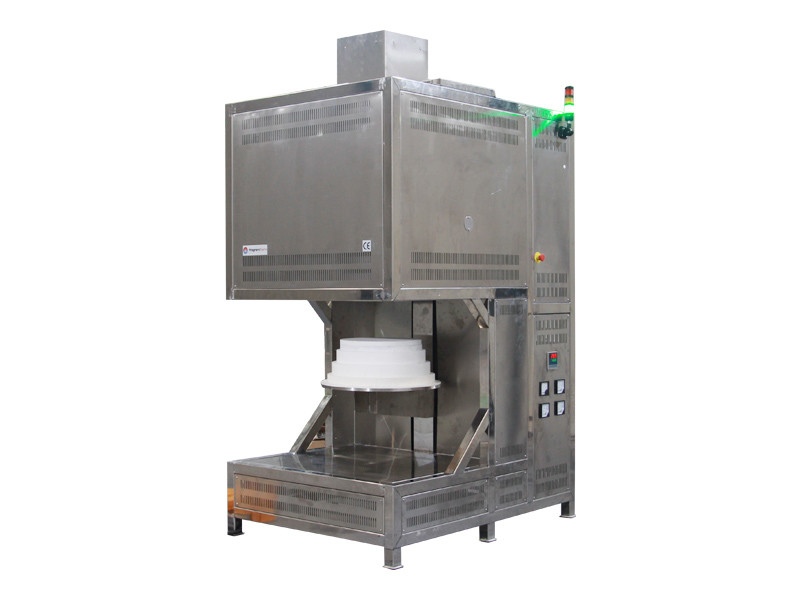

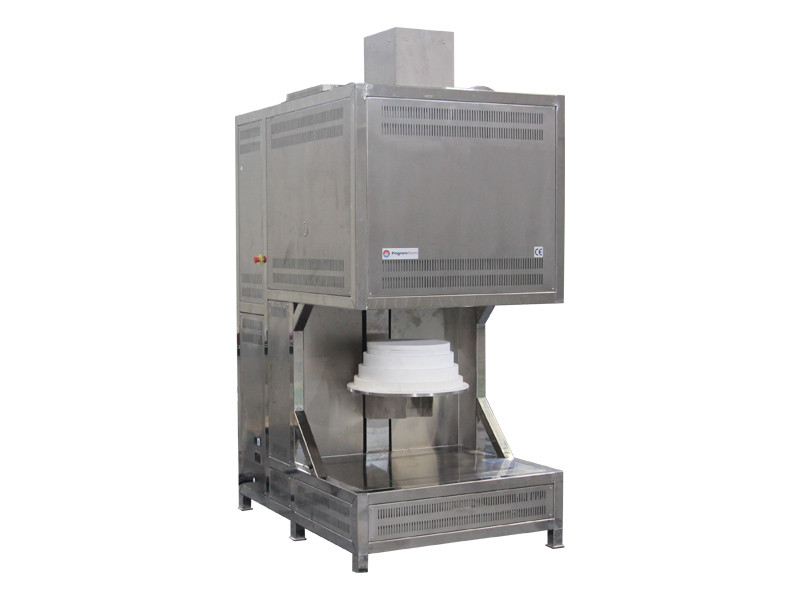

Elevator Furnace for Glass solvent experiment

Product Overview

Main Features

• TMax 1700°C
• 304SS air-cooled housing,reduce surface temperture
• Round chamber with arched roof design,alumina bubble brick chamber,high temperature resistance,efficient energy saving
• Round bottom electric lifting system equipped with a foot control panel, loading and unloading freely,high production efficiency

• The furnace top is designed with an exhaust gas secondary heating system and venting system

• U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature fiel
• 7" touch screen controller with USB adapter
• Type B Thermocouple,long service life
• Heating rate:0℃-10℃/min adjustable
• Smart 30-stage programmable automatic temperature control,high temperature control accuracy
• CE certification

Safety Measures

• Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1700°C Customized High Temperature Electric Lifting Furnace

• PE L100/17E Customized High Temperature Electric Lifting Furnace consists of six parts: furnace shell, heating chamber, lifting system, exhaust heating system, venting system and temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
• Siemens electrical components, long service life
• Export quality, ISO,CE certified.

1700°C Customized High Temperature Electric Lifting Furnace,Chamber.

• Round chamber with arched roof design,The inner wall insulation material is alumina bubble brick
• U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field,TMax 1700°C.
• A layer of ceramic cushion block under the heating element,easy to replace to protect the furnace entrance
• A 10mm high edge of the bottom tray to prevent the melted materials from overflowing
• Durable B-type thermocouple,long service life.

The bottom tray and circular electric lifting platform for 1700°C Elevator Furnace

• The bottom tray is composed of four layers of insulation materials from top to bottom, namely: corundum mullite support plate, alumina bubble brick, 1500 grade fiberboard and 1260 grade fiberboard.
• The furnace bottom is designed as a circular electric lifting platform, that is, a servo motor + module + lead screw electric lifting system
• The platform entrance is sealed

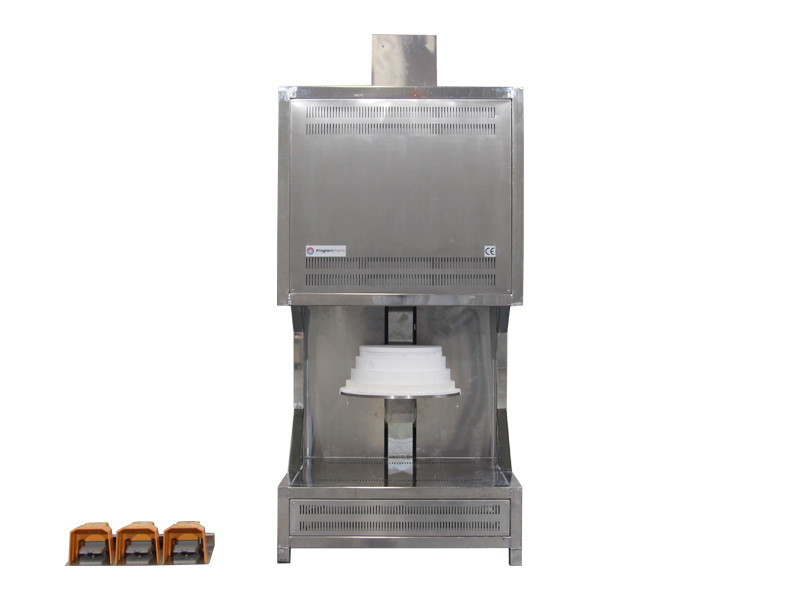

• Equipped with a foot control panel,the tray rises, falls and stops smoothly.

An exhaust gas secondary heating system and venting system for 1700°C Elevator Furnace

• The furnace top is designed with an exhaust gas secondary heating system and venting system
• The secondary heating system can filter the corrosive gas generated during the sintering process effectively.
• The filtered gas can be connected to the exhaust pipe in the factory to achieve safe gas discharging.

Heating Programs for 1700°C Elevator Furnace

• Yudian PID temperature controller,programmable 30 segments, heating rate 1-10C/min freely adjusted
• Good thermal insualtion, natural cooling, cooling down gently
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
• Please do not inject flammable, explosive or highly corrosive gases.
• For safety, please place the furnace in a ventilated place.
• The sample should be placed in a crucible, not directly in the chamber.

Size Comparison
