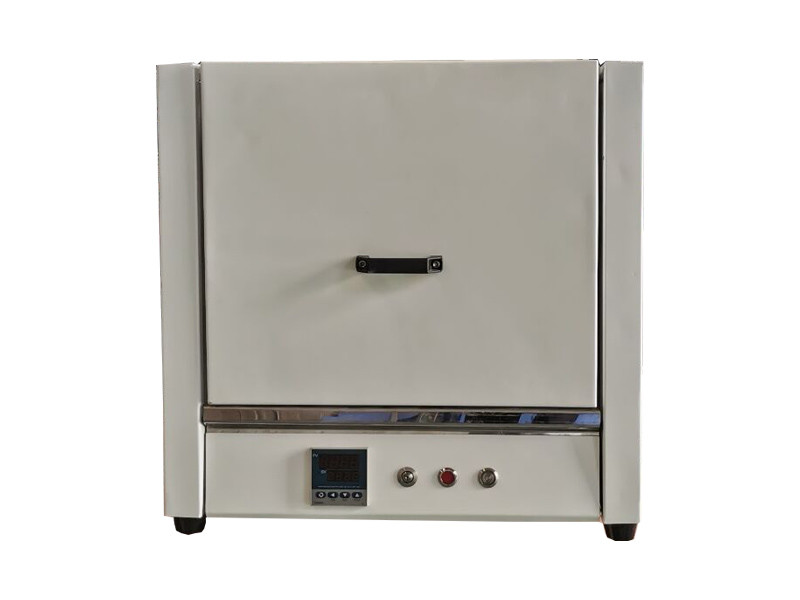

Laboratory Bench Muffle Chamber Furnace with Vertical lifting door 8L

 Product Overview

PM L8/12 is a Laboratory Bench Muffle Chamber Furnace with Vertical lifting door, high efficiency and energy saving, uniform heating. Carbon steel double housing. Bench Furnace chamber with embedded ceramic, high resistance to aggressive gasses and vapours. Heating element uses HRE alloy coil wire,3 sides heating, uniform temperature field. Temperature control system uses easy access to elements & controls for maintenance & servicing user friendly digital programmable controllers with graphic display of temperature, providing user levels, real time clock, program names and program log. Process data on a USB drive. Protection system with Power off, over-temperature, thermocouple breaking and burnout protection. Lift door design saves space, the door opening operation is safe and convenient, and the heating surface is away from the user. An ideal tool for laboratory and industrial material testing, annealing and sintering.

Main Features

• TMax 1200°C
• Carbon steel double housing, high-quality epoxy powder electrostatic spraying,surface temperature Rt+45℃
• Lift door design, benchtop lightweight structure, saving space
• Chamber with embedded ceramic, high resistance to aggressive gasses and vapours
• The furnace bottom is equipped with a wear-resistant silicon carbide protective plate
• HRE alloy coil wire, heating on three sides, uniform temperature field
• Heating rate: 0℃-25℃/min adjustable
• Durable Type N Thermocouple
• Digital programmable controller, curve heating and set temperature rate
• Power off, over-temperature, thermocouple breaking and burnout protection
• Siemens electrical components, long service life
• Stable performance, low noise and high safety
• CE certification

Safety Measures

• The muffle oven furnace with built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

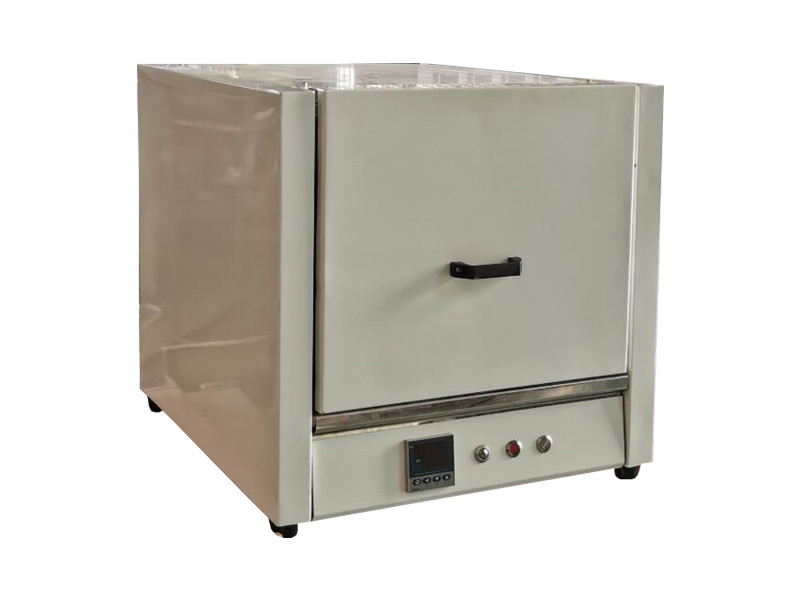

Laboratory Bench Muffle Chamber Furnace with lift door

• PM L8/12 Laboratory Bench Muffle Chamber Furnace with lift door consists of two parts: furnace body, temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components, long service life.
• Export quality, CE certified.

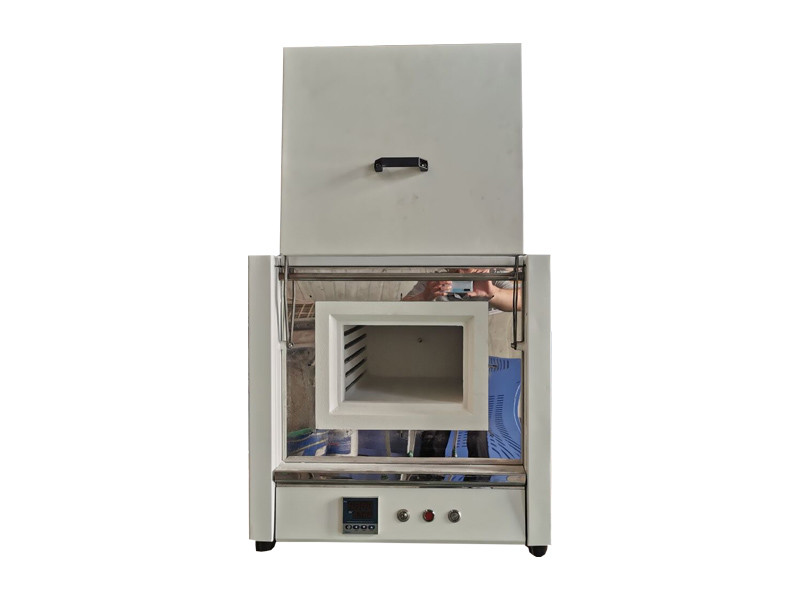

1200°C Laboratory Bench Muffle Chamber Furnace with lift door,Chamber.

• Chamber lining uses embedded ceramic fiber. Square chamber,chamber walls tight coupling.
• Heating element uses HRE alloy coil wire, heated on three sides, uniform temperature field,TMax 1200°C.
• Durable N-type thermocouple with long service life.

1200°C Laboratory Bench Muffle Chamber Furnace with lift door,A stainless steel exhaust chimney.

• A ceramic chimney pipe installed inside the furnace chamber, and a stainless steel exhaust gas/smoke emission chimney is installed at the corresponding position at the rear of the furnace body, sealed with a ceramic plug
• Sample products may generate volatile gas or smoke during the sintering process, it can be piped out from the inside chimney pipe, and the pipe can be connected to the pipeline or installed a exhaust fan to discharge to the outside

Heating programs for 1200°C Laboratory Bench Muffle Chamber Furnace with lift door

• With curve heating function, heating rate 1-20C/min freely adjusted.
• Graphic display of temperature, providing user levels, real time clock, program names and program log. Process data on a USB drive.
• Good thermal insualtion, natural cooling, cooling down gently.
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.

Size Comparison
