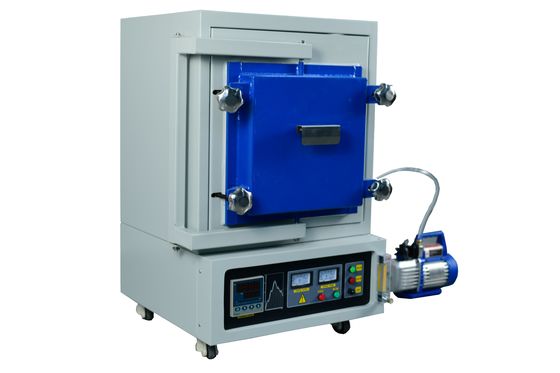

150x150x150 Chamber Size 1700°C Controlled Atmosphere Furnace With Auto-tune Function

Product Overview

PA L3/17 is a Controlled Atmosphere Furnace,sealed structure.1800# polycrystalline fiber chamber.Heating element uses high-quality new type MoSi2 rod.Yudian PID controller,programmable 30 segments,good stability and high temperature control accuracy.Gas port uses 1/4" hose barb,work in air, inert gas and rough vacuum environment,Gas pressure not exceed 0.03MPa / 150torr / 3 psi.Max vacuum 50000Pa.In many heat treatment experiments such as additive manufacturing, controlled atmosphere furnaces provide the environment for a variety of purposes, providing the controlled temperature and atmosphere required for a specific project.

Main Features

• TMax 1700°C
• Carbon steel double housing,furnace surface water cooling circulation,reduce surface temperature
• Double furnace door design, special sealing structure, stable working environment
• 1800# polycrystalline ceramic fiber raw materials,CNC carved,high temperature resistance,efficient energy saving
• Multi-set air inlet and outlet,equipped with gas float flowmeter,stainless steel ball valve, silicone gasket and pressure gauge
• Max gauge pressure 0.03Mpa, Max vacuum – 0.09Mpa
• Available gases:H2, Ar, N2 etc
• High-quality new type MoSi2 rod,both sides heating,uniform temperature field
• Type B Thermocouple,long service life
• Heating rate 0℃-10℃/min adjustable
• Phase-shift trigger, thyristor control
• Smart 30-segment programmable automatic temperature control,high temperature control accuracy
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

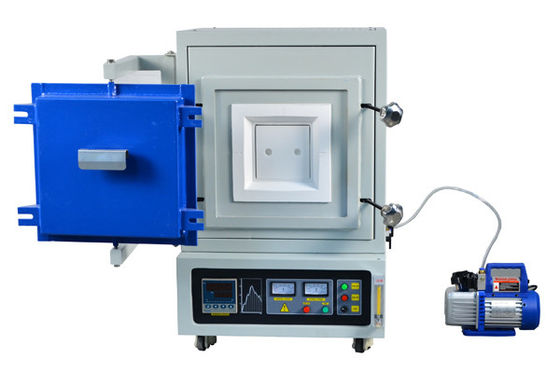

Product Details

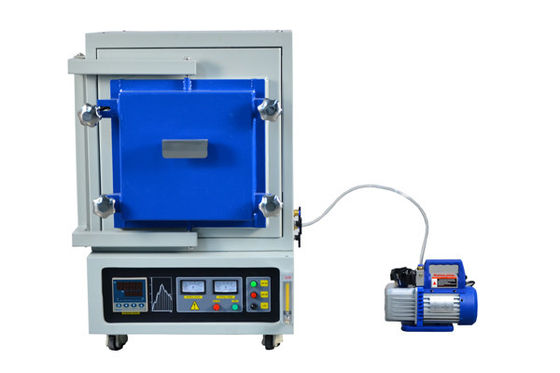

Front view of the Furnace

Technical Specifications

Application Notes

• Gas pressure in the furnace tube should not be higher than 0.02MPa.
• High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
• When using flammable and explosive gases for experiments, safety accessories must be equipped.
• When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
• The equipment room must be well ventilated.

Size Comparison
