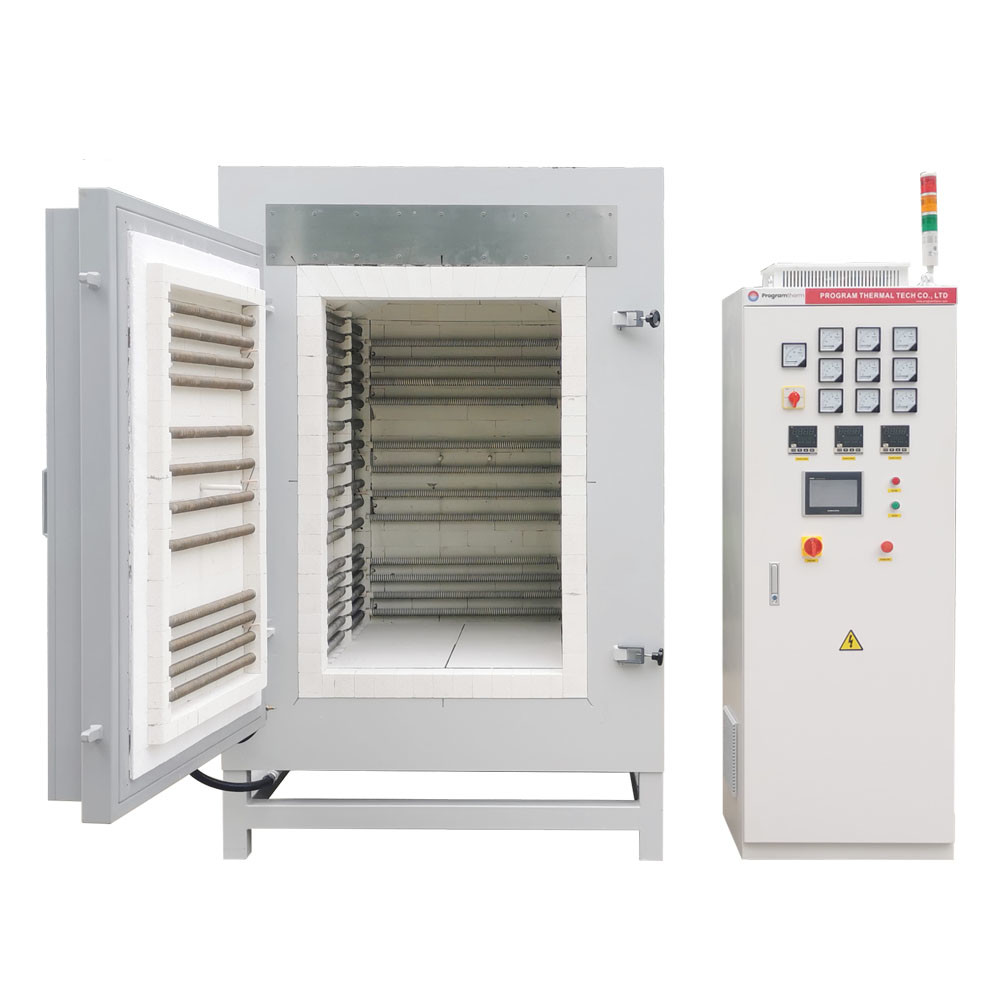

1200℃ 1000L Industrial Chamber Furnace

Product Overview

PC L1000/12 is a large floor-standing Industrial Chamber Furnace.Carbon steel double housing.Heavy type,cubic chamber.Chamber lining uses high alumina mullite bricks,high temperature and corrision resistance.Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-sided heating,N-type thermocouple.Smart Shimaden PID controller, 32 segments programmable,high temperature control accuracy.Ideal for a variety of heat treatments and sufficient to meet a variety of applications such as quenching, tempering, annealing and stress relieving.

Main Features

• TMax 1200℃
• Industrial, heavy type chamber furnace.Heavy type,cubic chamber.High alumina mullite bricks chamber,good high temperature resistance,reduce energy loss
• self-developed new arched furnace top, equip an exhaust piping system.
• HRE alloy coil wire heated,mounted on ceramic tube,5-sided heating,uniform temperature field
• Power off, over-temperature, thermocouple breaking and burnout protection
• N-type thermocouple
• Heating rate 0℃-20℃/min adjustable
• Good performance and energy saving effect
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the chamber furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace chamber operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1200℃ Industrial Chamber Furnace

• PC L1000/12 Industrial Chamber Furnace consists of two parts: furnace body and temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components,long service life.
• Export quality,ISO,CE certified.

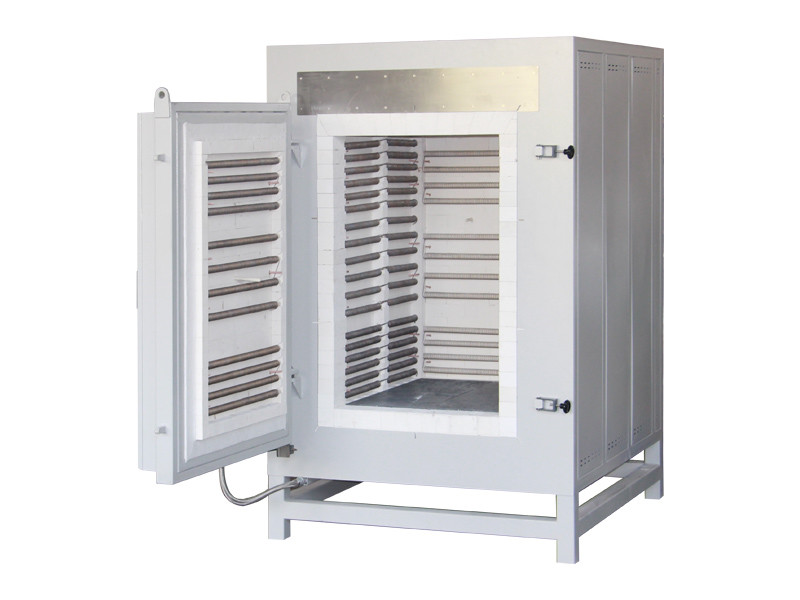

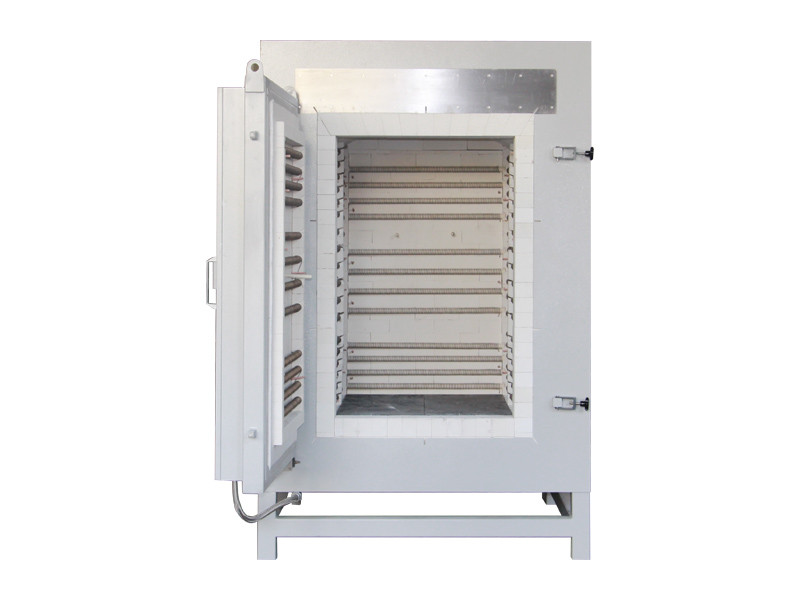

1200℃ Industrial Chamber Furnace,Chamber

• Chamber lining uses high alumina mullite bricks,heavy type,cubic chamber,chamber walls tight coupling.
• Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
• Equip two N-type thermocouples,long service life.

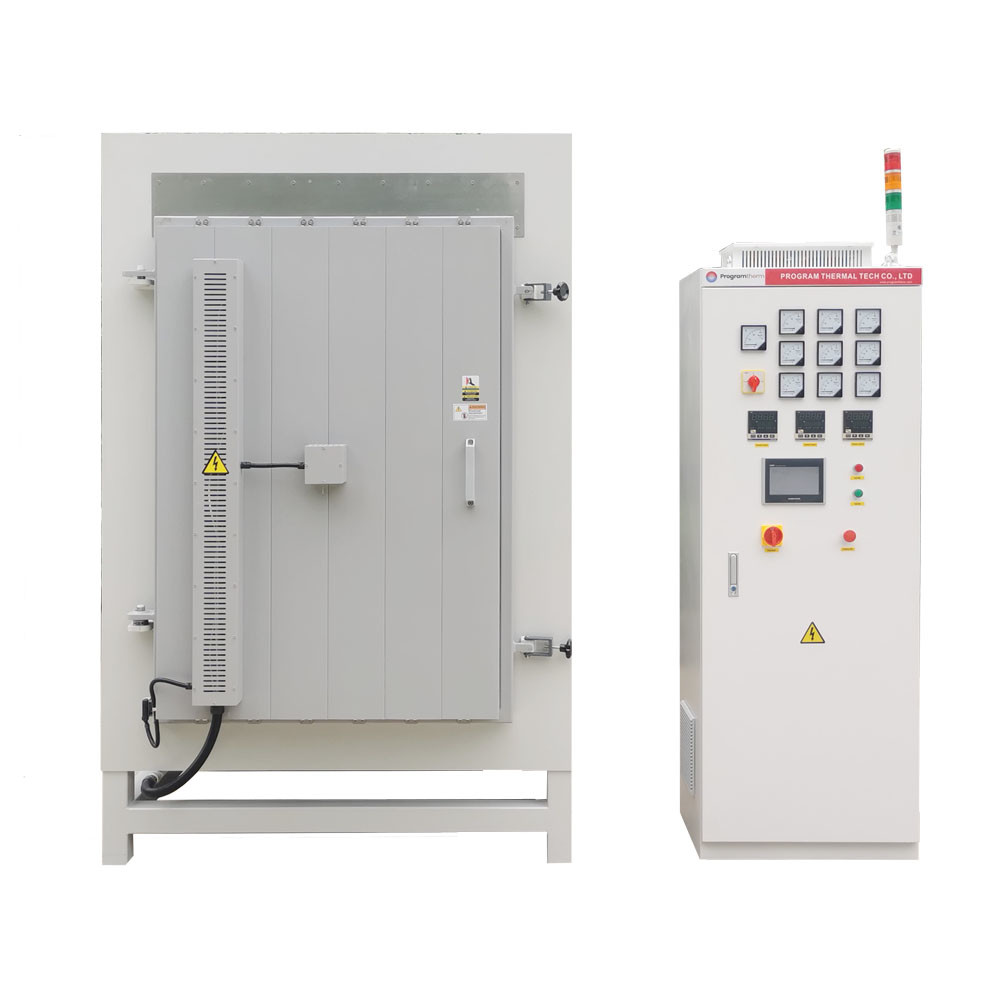

1200℃ Industrial Chamber Furnace,Electrical control panel.

• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function
• With 485 communication interface(Optional)

Heating and cooling of 1200℃ high temperature Chamber Furnace

• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
• Good thermal insualtion, natural cooling, cooling down gently.
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.

Size Comparison
