1700C Hydrogen Tube Furnace With An Alumina Tube Size OD60mm

Hydrogen Tube Furnace up to 1700 degree C

Product Description:

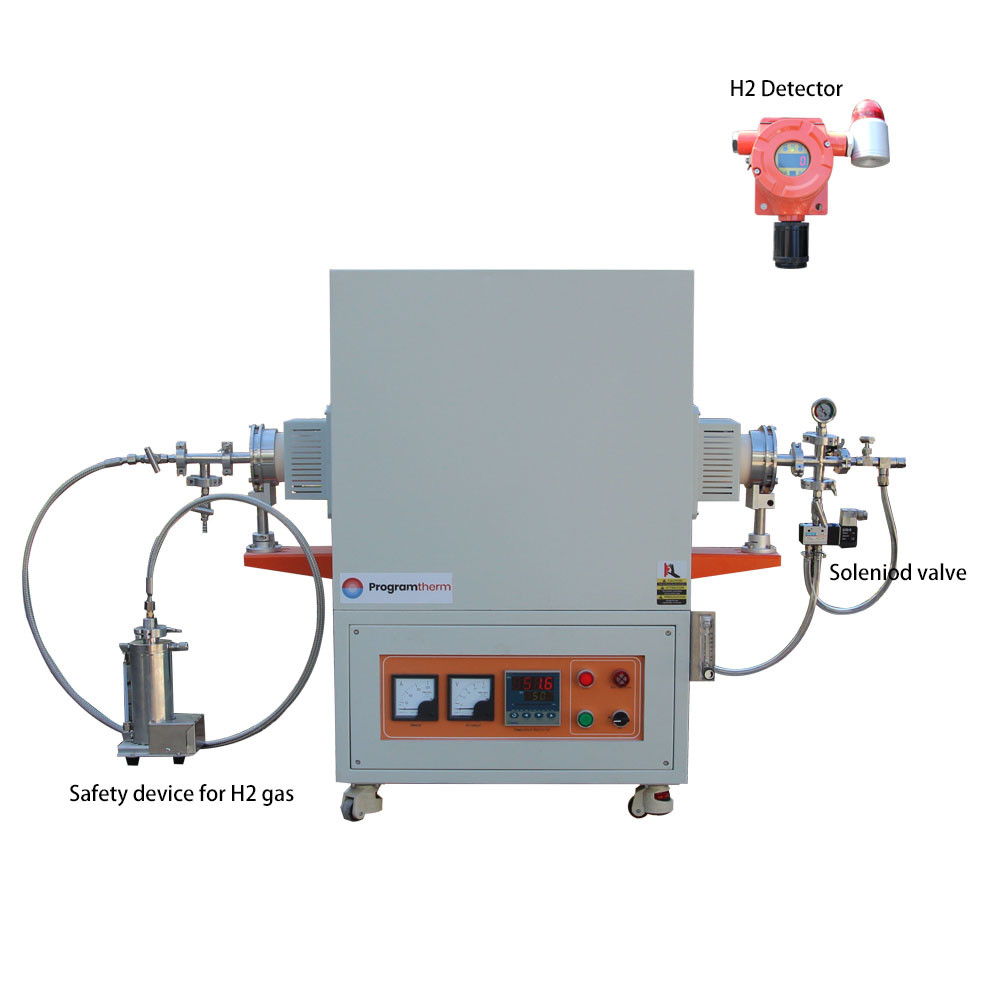

Hydrogen Tube Furnace workstation generally consists of a tube furnace, a high vacuum pump unit, filtration device for the Hydrogen or Auto ignation device and other assembling parts such as furnace tube, flanges, etc. Tmax 1700°C, the ultimate vacuum rate goes to 10^-3 torr with molecular vacuum pump units. This kind of tubular furnace is competent for the experiments as CVD, Diffusion, and other thermo-treatments under vacuum status and atmosphere protection.

Front View for 1700C Rotary Tube Furnace

Main Features

• Tmax 1700°C
• Dual steel structure, minium heat loss
• Multi-channel precise mass flow gas control
• Filtration device or Auto ignation device
• Multiple gas inlets and outlets
• Max vacuum level 10E-3 torr
• Powerful MoSi2 heating elemets ensure uniform temperature
• PID controller with programmable 30 segments
• Alumina tube and SS304 sealing flanges included
• Dual flanges support provides better sealing and longer tube life
• Non-Split furnace chamber to protect heat loss
• Long life type B thermocouple
• CE standard

Safety

• • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
  • Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to                         controller’s manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Technical Parameters:

Application Notes

• Don’t fill any explosive gasses such as Hydrogen or Methane into the tube without necessary safety controls and supervision.
• Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
