1700C vacuum tube furnace High Temperature Tubular Furnace OD170mm ID150mm

Product Overview for Rotary Tube Furnace

PTR D170/900/17 is a highly customized CE certified OD170mm large ROTARY tube furnace with complete vacuum sealing flange and water cooling devices. Furnace tube was build with recrystallized SiC tube. The furnace equips with a material feeding box, discharging box, gas inlet and outlet, pressurized gas inlet and outlet, Rotary& tilting system,heating zone 900mm in length and controlled by a precision 30 segments of digital temperature controllers independently. The heating zone is heated by powerful 1800 MoSi2 elements up to 1600°C. Material production output 3L/hour. It is an excellent furnace to process powder materials, and also can be used for nano or film growth by CVD.

Main Features

• Tmax 1600 °C
• Continuous, rotating, tilting tube furnace
• Dual steel structure, non-split furnace chamber to protect minium heat loss
• Multiple atmosphere processes in a single cycle are available
• Fiber-insulated chamber with powerful MoSi2 heating elemets ensure uniform temperature ensure uniform temperature
• Shimaden PID temperature controller with programmable 30 segments
• SS304 water cooling sealing flanges with valves and pressure meter included
• Long life type B thermocouple
• CE certified, standard

Ramping, Dwelling, Cooling Curves for 1700 Series Tube Furnaces

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

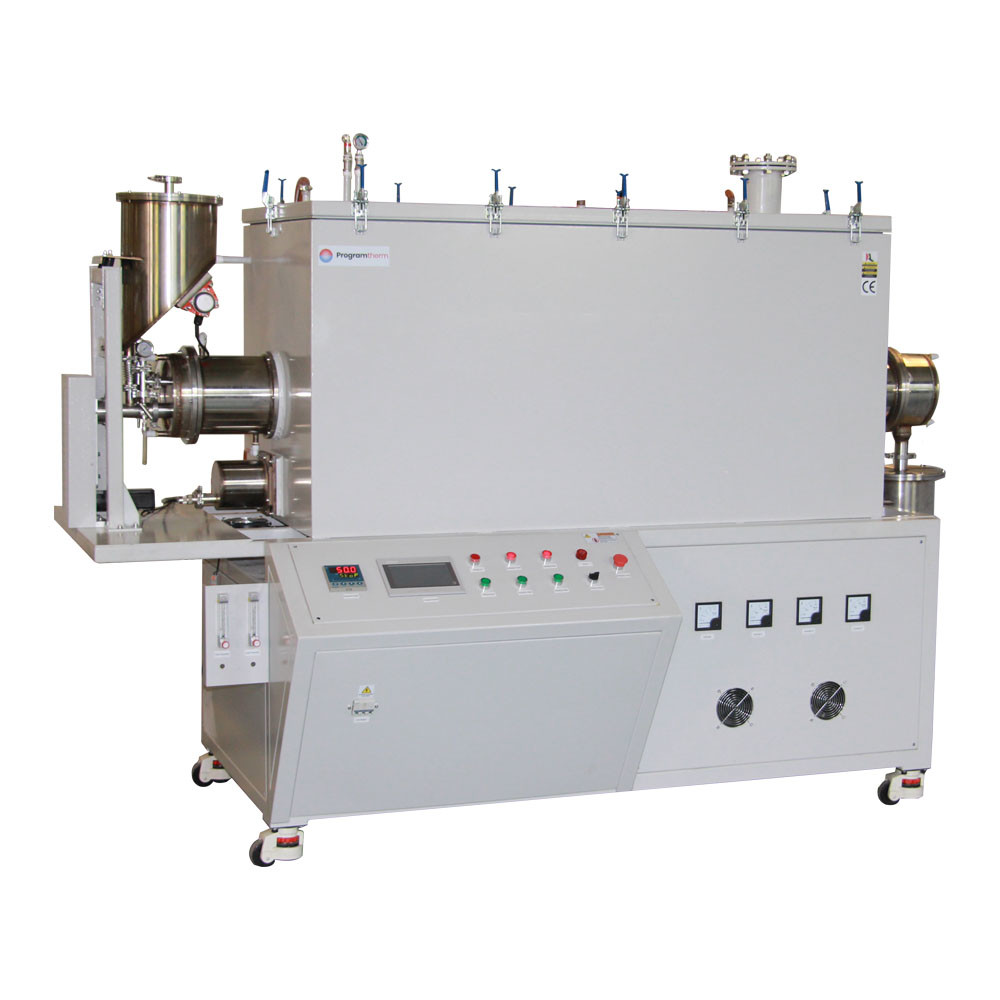

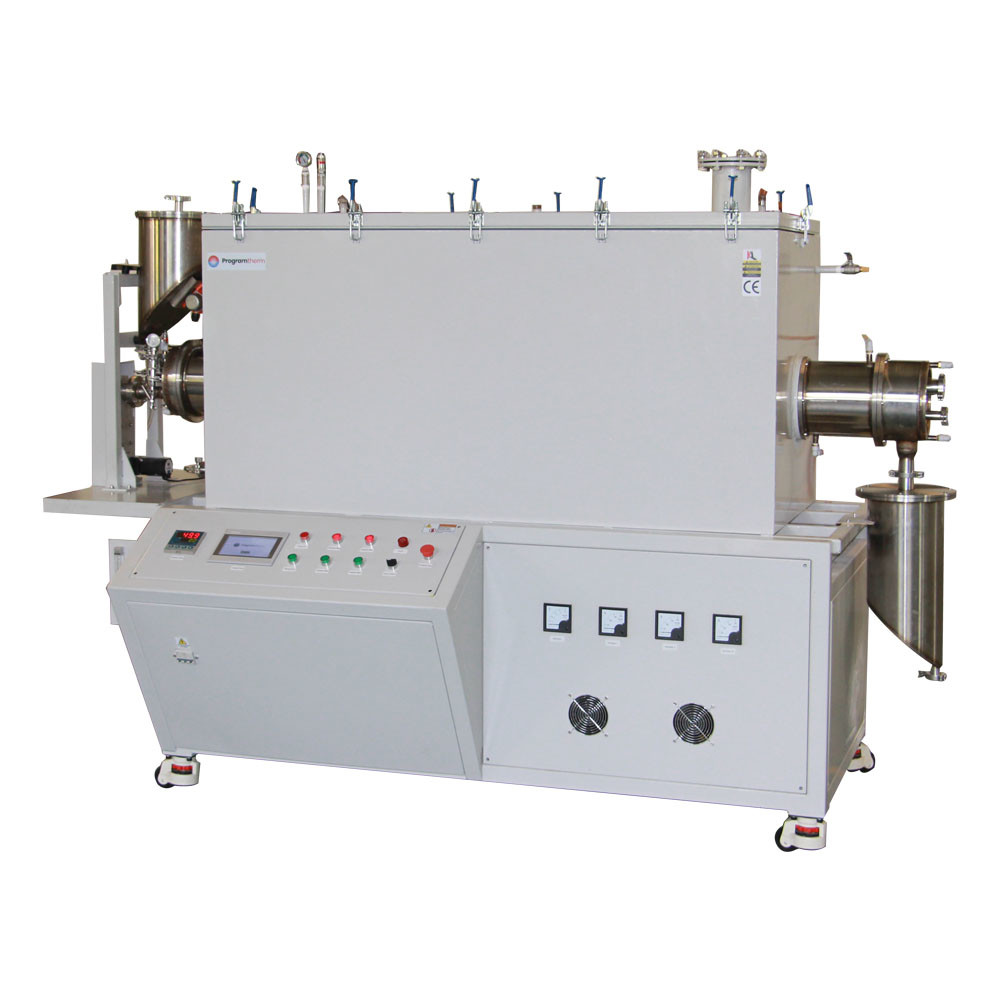

Front View for Rotary Tube Furnace 1700 degree C

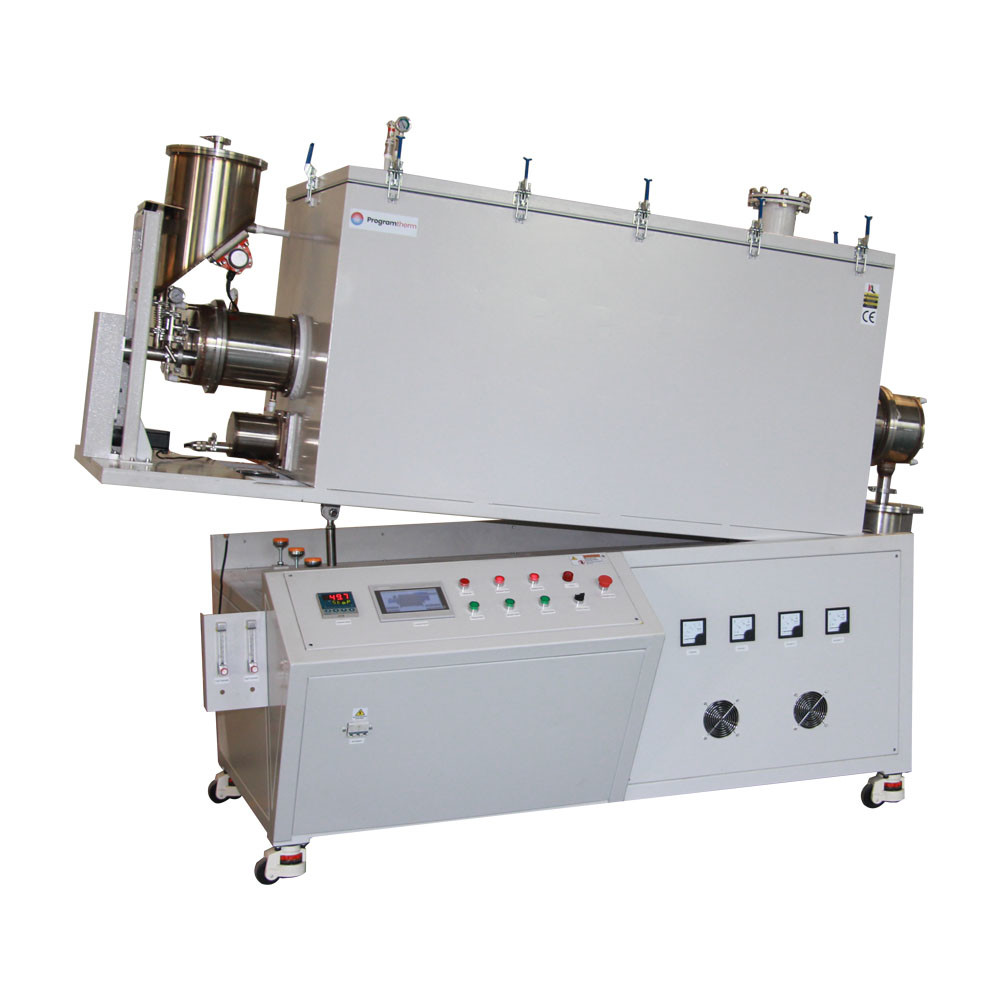

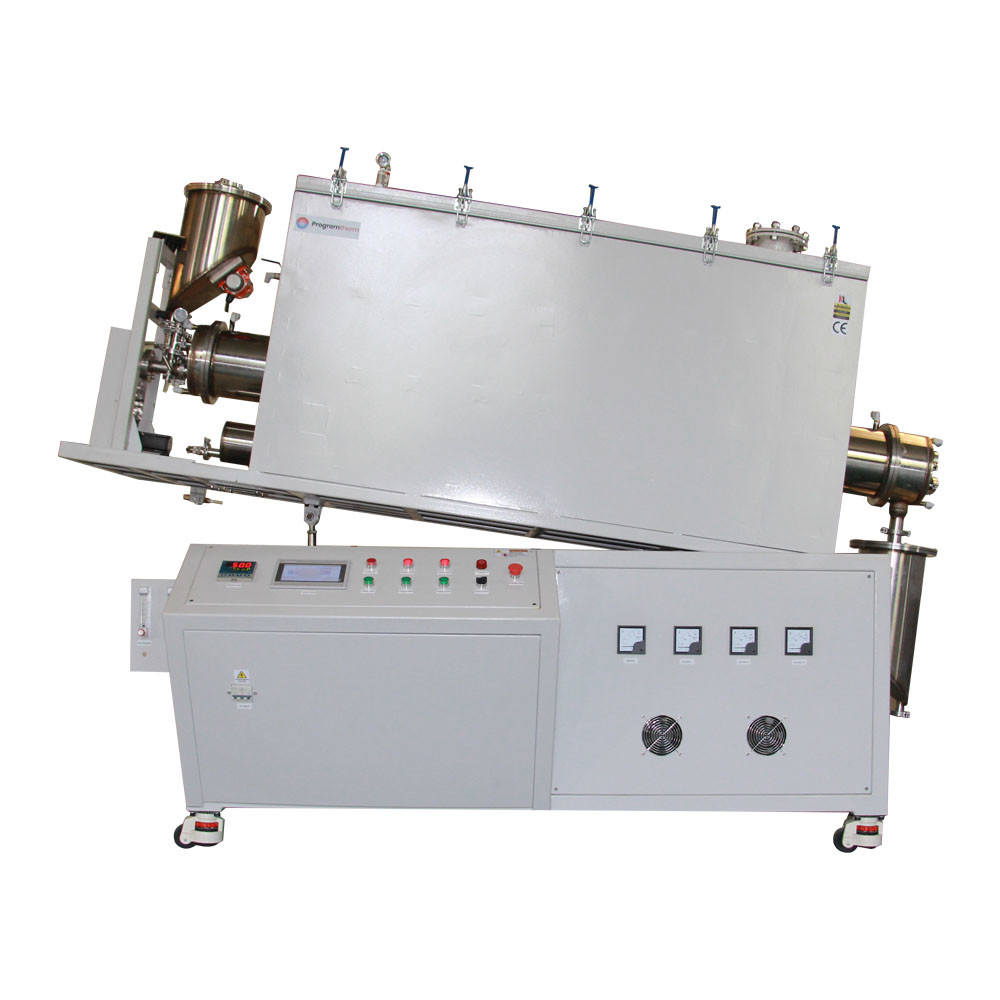

Side view for 1700C Rotary Tube Furnace with water cooling device

Technical Specifications

Application Notes

• Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
• 1700C tube furnaces with alumina tube are designed for use under vacuum and low pressure; 0.2 bars / 3 psi / 0.02 MPa
• To minimize the cracking rate of the ceramic tubes, please change the position (mark four points on the tube) each batch
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
