Heat Treatment Muffle Furnace for Sale 1700C

Product Overview for 1700C Muffle Furnace

Heat Treatment Muffle Furnace features high alumina ceramic fiber insulated with powerful heaters, enables samples to be heat-treated at temperatures exceeding 1700°C (3092°F). Therefore the heat treatment muffle furnace is an ideal tool for high-temperature laboratory heat treatment applications such as heat treating, reacting studies, sintering processes, ignition tests and ceramic firing etc.

Main Features

• Tmax 1700 °C
• Dual steel structure with fan cooling for low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Powerful MoSi2 rods heating from two sides ensure an improved temperature gradient
• Programmable Digital PID Temperature Controller
• Long life type B thermocouple
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

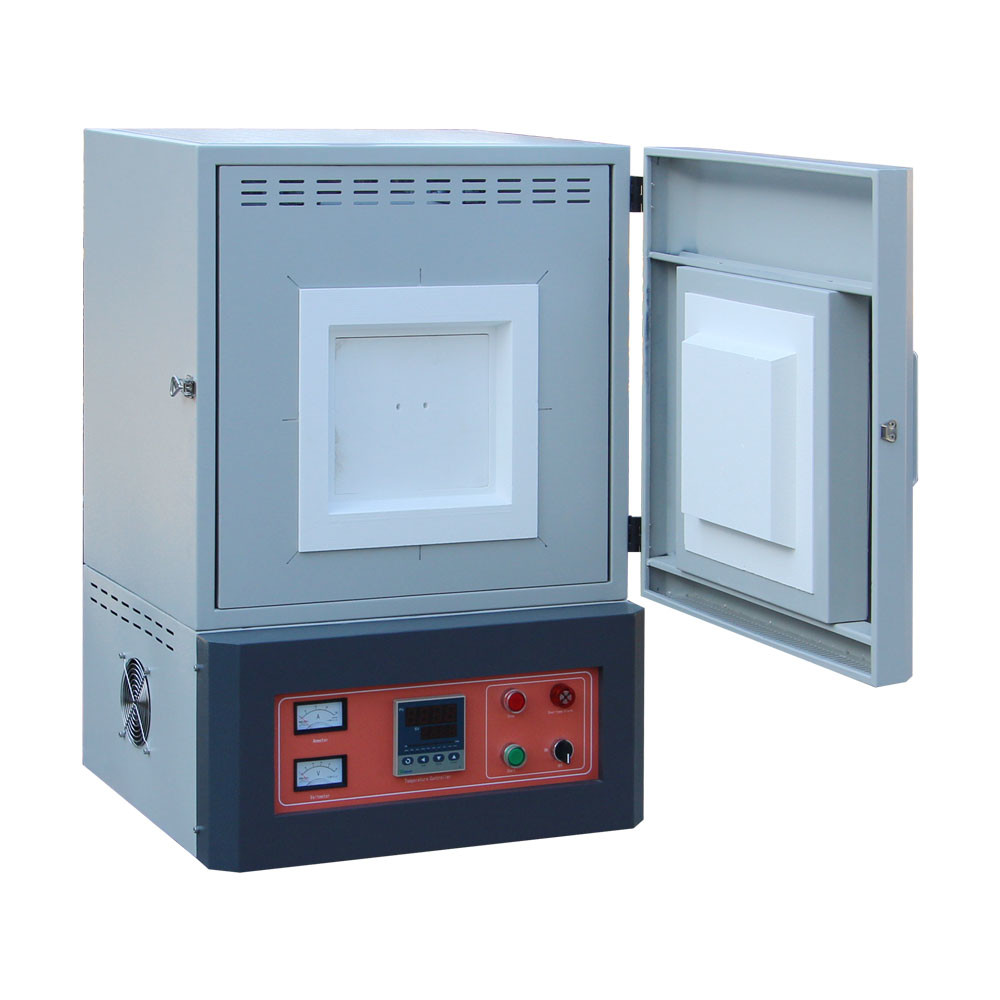

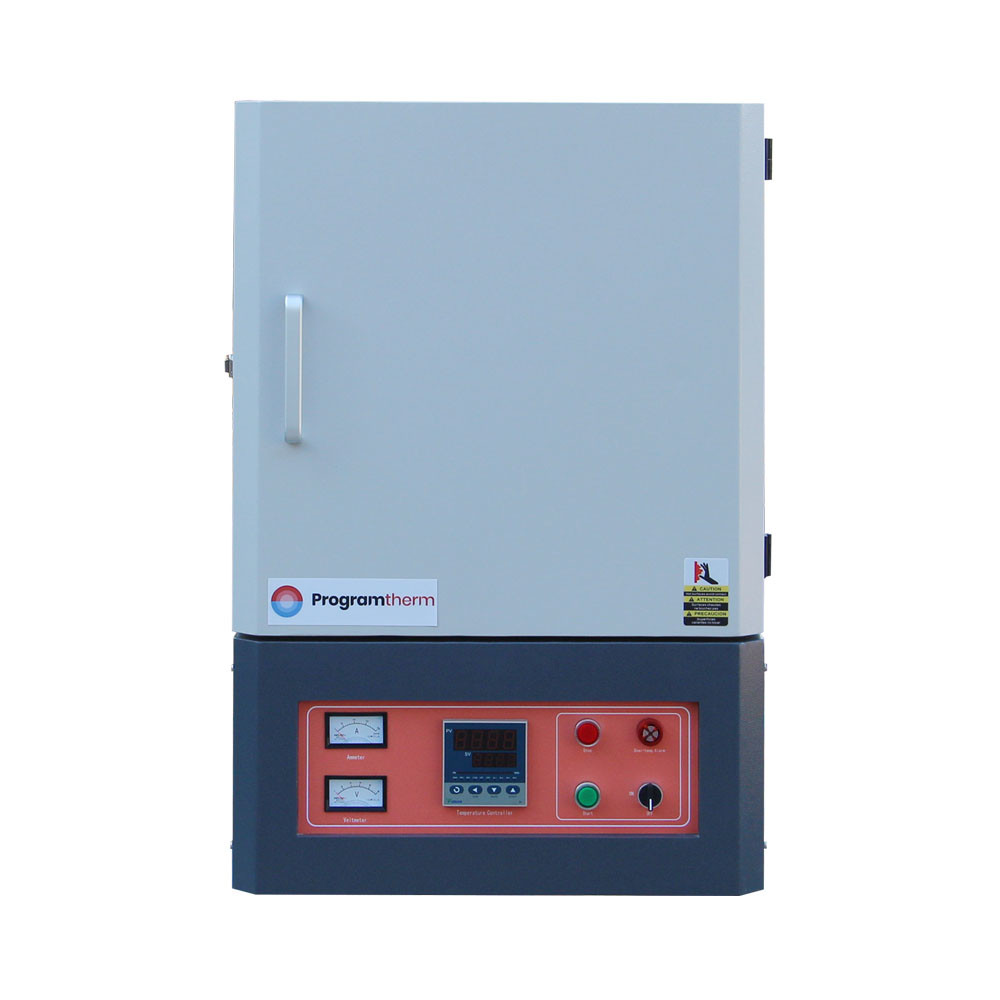

Front View for High Temperature Muffle Furnace 1700 degree C

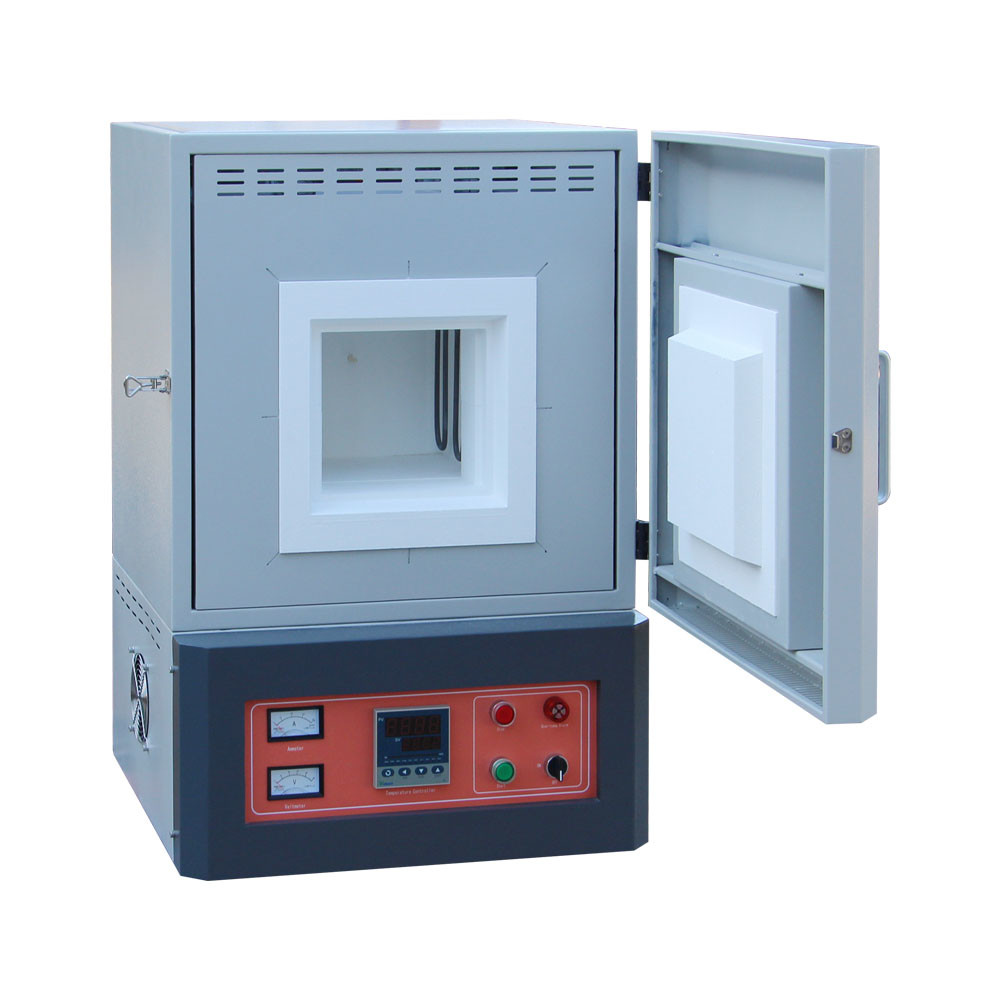

Front view for 1700 degree C High Temperature Tube Furnace

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this muffle furnace 1200 C without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
